Loom Design & Manufacture
Bespoke vehicle wiring loom design, manufacture and installation — whatever you need, we'll make it happen.
Vehicle Wiring Looms
To make sure that your vehicles electrical system can do everything you want it to do, sometimes the only solution is a custom wiring loom. The team here at HSD Vehicle diagnostics Ltd can create wiring looms to your specifications, ensuring you have the functionality you need.
Based in Hampshire, we have supplied custom wiring looms for clients across Berkshire, Hampshire, Wiltshire, Oxfordshire, and Surrey. Get in touch for more information.
Bespoke Wiring Solutions
With over 40 years of experience in vehicle electrical systems, HSD Vehicle Diagnostics has the knowledge and expertise to design, build and install bespoke wiring solutions for almost any type of vehicle. Whether you require a complete custom wiring loom, modifications to an existing electrical system, or specialist wiring for a unique project, we can provide a reliable solution tailored to your exact requirements.
We have designed and installed bespoke wiring systems for private customers, classic car restorations, kit cars, camper vans, motorhomes, commercial vehicles, agricultural machinery, and public sector fleets. Every wiring loom is carefully planned and built using high-quality components to ensure reliability, durability, and ease of future maintenance.
Our custom wiring solutions can incorporate a wide range of electrical systems and accessories, including:
- Complete custom wiring looms
- LED lighting and auxiliary lighting systems
- Camper van and leisure vehicle electrics

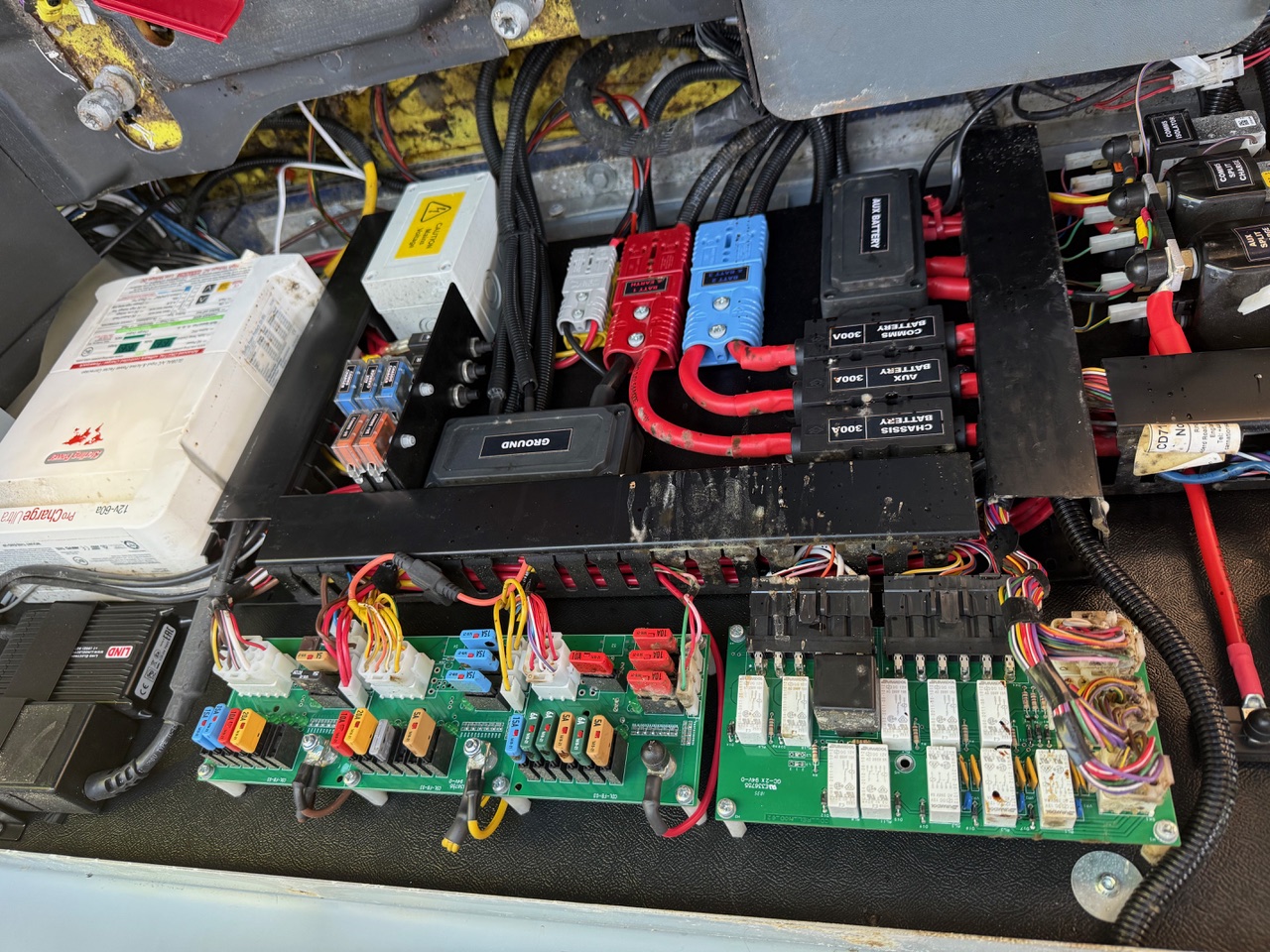

- Battery management and split charging systems

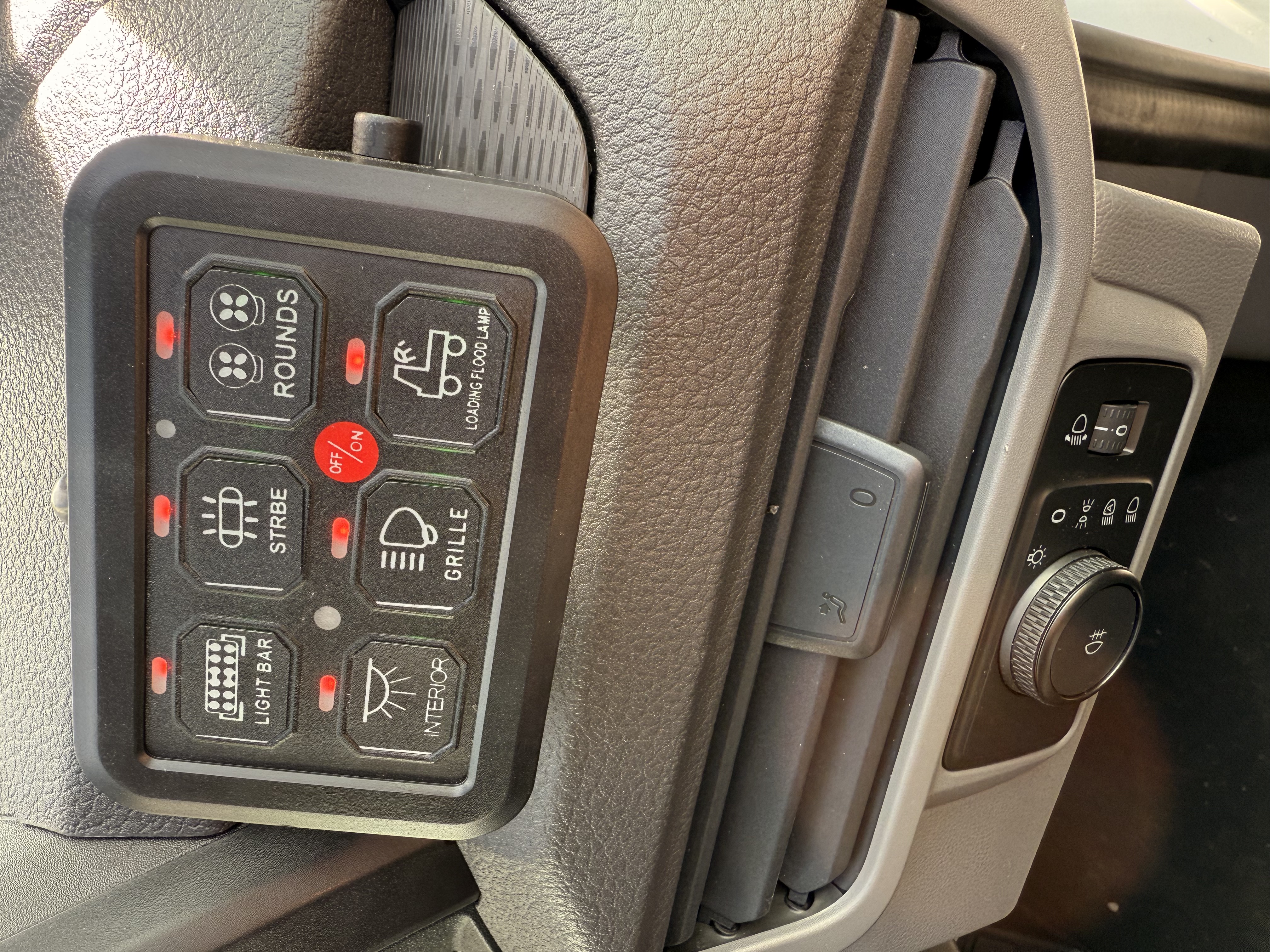

- Switch panels and relay control systems
- Vehicle monitoring and diagnostic connections
- GPS tracking and telematics integration
- Dash cameras and security systems
- Internet and communication equipment
- Specialist equipment for emergency and commercial vehicles
Whether you’re building a vehicle from the ground up, restoring a classic, upgrading a camper van, or installing additional electrical accessories, we can design a wiring system that is safe, tidy, reliable and built to last.
Every project is different, which is why we take the time to understand exactly what you need before designing a solution that works for you. From initial planning through to installation and testing, we ensure every connection meets the highest standards.
Design, Manufacture, and Installation
We’ll take care of everything for you. We can create systems that are designed to meet your specific needs or supply you with a range of high-quality ready-made options, depending on what best suits your requirements. For bespoke systems, our service includes design, manufacture and installation. We provide:
- Full colour brochure with each loom design
- Wiring, cabling and connectors
- Harnesses and chassis control systems
We also offer a range of plug in, drive away electronic options – just speak to the team to see what we have!
What Can We Create for Your Vehicle?

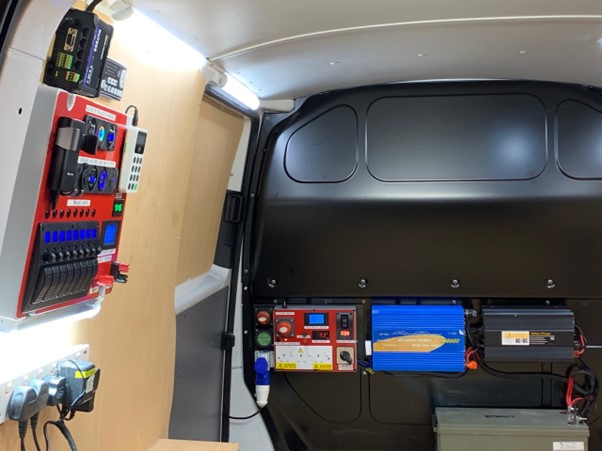

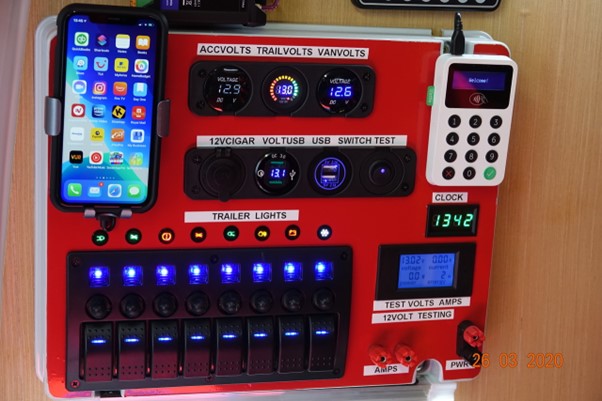

Whatever your needs may be, we’ll come up with the most effective way to meet them. Previous bespoke designs have included an installation in a VW T6 Transporter that provided the client with a mobile phone and credit card machine charging station, as well as charging facilities for battery operated power tools, diagnostic equipment, and lighting. The system was also configured to monitor the vehicle battery system and accessories, such as light beacons, interior lighting, and front LEDs all at the same time while on-site.
The system runs a 3000watt pure sine wave inverter, for internet and 240-volt mains for the computers and diagnostic equipment.
We design, build, and install bespoke wiring looms. Whatever you need, we'll make it happen.
